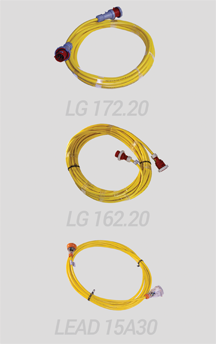

Three phase Lifeguard leads are available in 32A and 63A current ratings and built with standard lengths of 10m, 20m and 30m. Non standard lengths can however be made upon request.
The copper braided screen provides protection for the 4cores and acts as the earth providing maximum safety for personal.
5pin IP67 rated connectors complying with IEC60309 are fitted at each end of the lead. Single phase earth screen cable is also available in 2.5mm or 6.0mm for use with 15A, 16A or 32A connectors.
Lifeguard leads have been designed for use on construction sites and are suitable for interconnection of the Lifeguard power reticulation system.
Complies with ASNZS 3012 Appendix K
